Cyber Info•4mo ago

IP allocation

Hi! I need advice for setting up my network.

I have 23.130.212.0/24, and I want to assign a /29 to a router. My border router is a mikrotik and the router I want to assign the /29 to is a Unifi box.

Advice?

Cyber Info banner

Cyber Info Join

At Cyber Info, we strive to empower every individual with easy access to cybersecurity education

189,258Members

View on Discord

Resources

Recent Announcements

Similar Threads

Was this page helpful?

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 1:24 AM

I'm willing to send my configs-

Lavender-Jamie

LLavender-Jamie Hi! I need advice for setting up my network. I have 23.130.212.0/24, and I want...

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 1:43 AM

dude pls don't dox yourself

guninvalid? more like stupidvali

Gguninvalid? more like stupidvali dude pls don't dox yourself

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 1:43 AM

How did I?

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 1:44 AM

that's a public IP address it's set for Vancouver BC

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 1:44 AM

presumably that's where you are

guninvalid? more like stupidvali

Gguninvalid? more like stupidvali that's a public IP address it's set for Vancouver BC

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 1:44 AM

Yeah uhhh I don't mind-

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 1:45 AM

Everyone knows I'm in Vancouver already.

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 1:45 AM

And I'm not actually in vancouver I only have offices in vancouver

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 1:46 AM

well don't dox your offices either!

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 1:46 AM

but i mean if you insist

Lavender-Jamie

LLavender-Jamie Hi! I need advice for setting up my network. I have 23.130.212.0/24, and I want...

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 1:46 AM

can you show your network topography? are you trying to set up an Internet service that needs to put out like a website or do you just need connection to the internet?

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 1:48 AM

guninvalid? more like stupidvali

Gguninvalid? more like stupidvali can you show your network topography? are you trying to set up an Internet servi...

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 1:57 AM

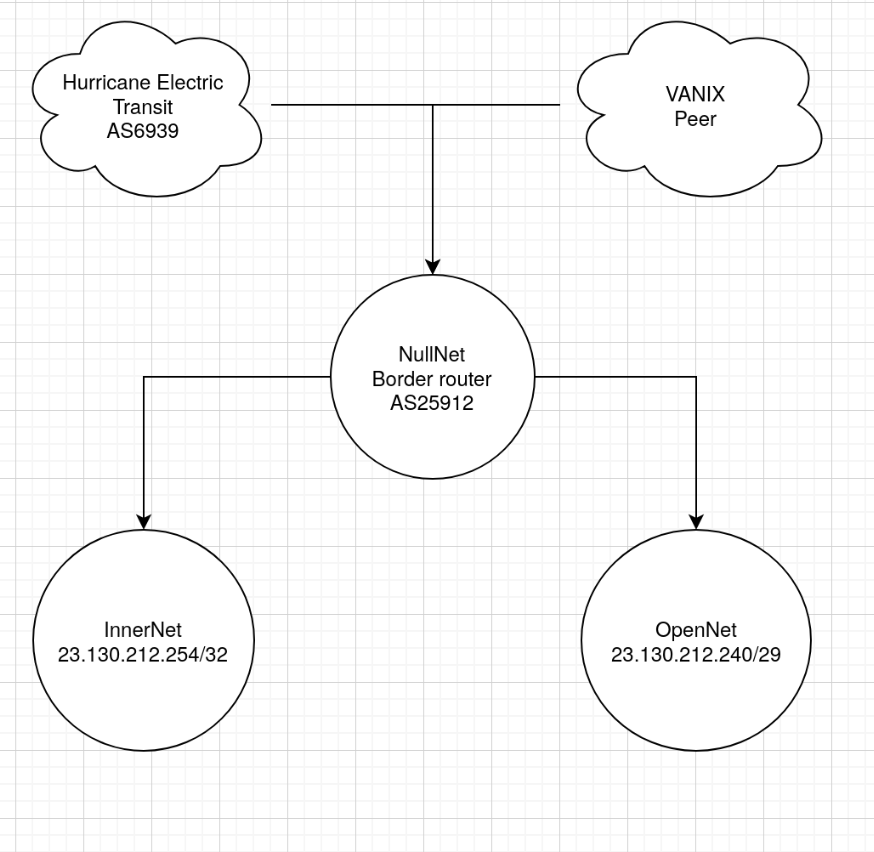

Well it's absurdly simple.

guninvalid? more like stupidvali

Gguninvalid? more like stupidvali -# also you should hire me to design your network :bp_wink:

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 1:58 AM

I mean if you have good ideas...

Lavender-Jamie

LLavender-Jamie Well it's absurdly simple.

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:20 AM

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:20 AM

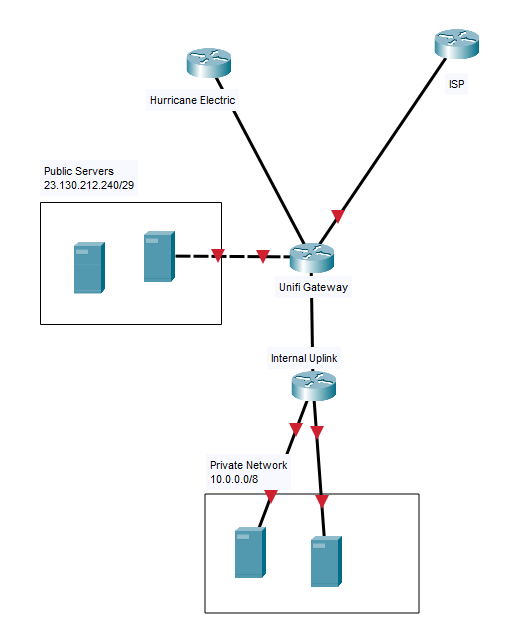

ok so does it kinda look like this?

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:20 AM

Uh no.

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:20 AM

your network isn't in a design language i'm familiar with unfortunately

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:21 AM

Wdym design language?

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:21 AM

I’ve got bgp sessions with both HE and VANIX.

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:21 AM

ok so explain how your innernet and opennet look like then

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:21 AM

are you connected directly to HE and VANIX?

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:21 AM

Yeah. I have a fiber link.

guninvalid? more like stupidvali

Gguninvalid? more like stupidvali ok so explain how your innernet and opennet look like then

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:22 AM

Well both are just names I use to keep track of

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:22 AM

ok so explain what they look like on the inside

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:22 AM

are they OSPF autonomous zones?

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:23 AM

Osfp?

guninvalid? more like stupidvali

Gguninvalid? more like stupidvali ok so explain what they look like on the inside

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:23 AM

Well I’ve got three routers.

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:23 AM

One is the border which connects up to VANIX and HE.

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:23 AM

The other two connects to the border.

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:24 AM

ok so you have your opennet router and your innernet router

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:24 AM

Yes.

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:24 AM

for your opennet is that supposed to be for server traffic? do you have some servers that need to receive connections from the public internet?

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:24 AM

Innernet works.

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:25 AM

Uh so innernet are for server traffic. Opennet is for like VPNs.

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:25 AM

explain

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:25 AM

What can I explain?

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:26 AM

ok let me take this one at a time

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:26 AM

you say innernet is working, what services are in there and which are working? presumably all of them but which?

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:26 AM

Well working as in it is reachable from the no default zone.

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:27 AM

Sorry I mean default free zone.

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:27 AM

what's the default free zone?

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:28 AM

Well uhhh the zone of the internet that can reach every part of the internet without using default routes.

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:28 AM

ok i might be getting ahead of myself

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:29 AM

let me go back to your actual question first

Lavender-Jamie

LLavender-Jamie Hi! I need advice for setting up my network. I have 23.130.212.0/24, and I want...

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:29 AM

you typically don't need to have multiple public IPs unless you have services to render

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:29 AM

Well I have a /24 so…

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:29 AM

if you do have services to render, i.e. web server or dns or whatever, it's common practice to set it so 1 ip does 1 service

Lavender-Jamie

L

Lavender-JamieOP•9/8/25, 2:30 AM

And I do have multiple services to render. With IPv4 exhaustion tho I prefer to port forward and use reverse proxies.

guninvalid? more like stupidvali

G

guninvalid? more like stupidvali•9/8/25, 2:30 AM

i.e. ns1.service.com would get 212.241, ns2.service.com would get 212.242
